Real boards, real houses

Boards We Have Fitted

Every board on this page is one we fitted, photographed on the day we finished it. Nothing here is a stock photo. If your board looks like the one in the first picture, you already know what the after looks like.

Fixed price by photo

Send 3 photos, get a fixed price

No visit needed. We reply with a fixed written price within two working hours, 8am to 8pm, seven days a week.

Photos are optional. Add what you can and we will do the rest.

We only use your details to send your quote. No mailing lists, no passing on. Prefer WhatsApp? Send the same 3 photos to WhatsApp.

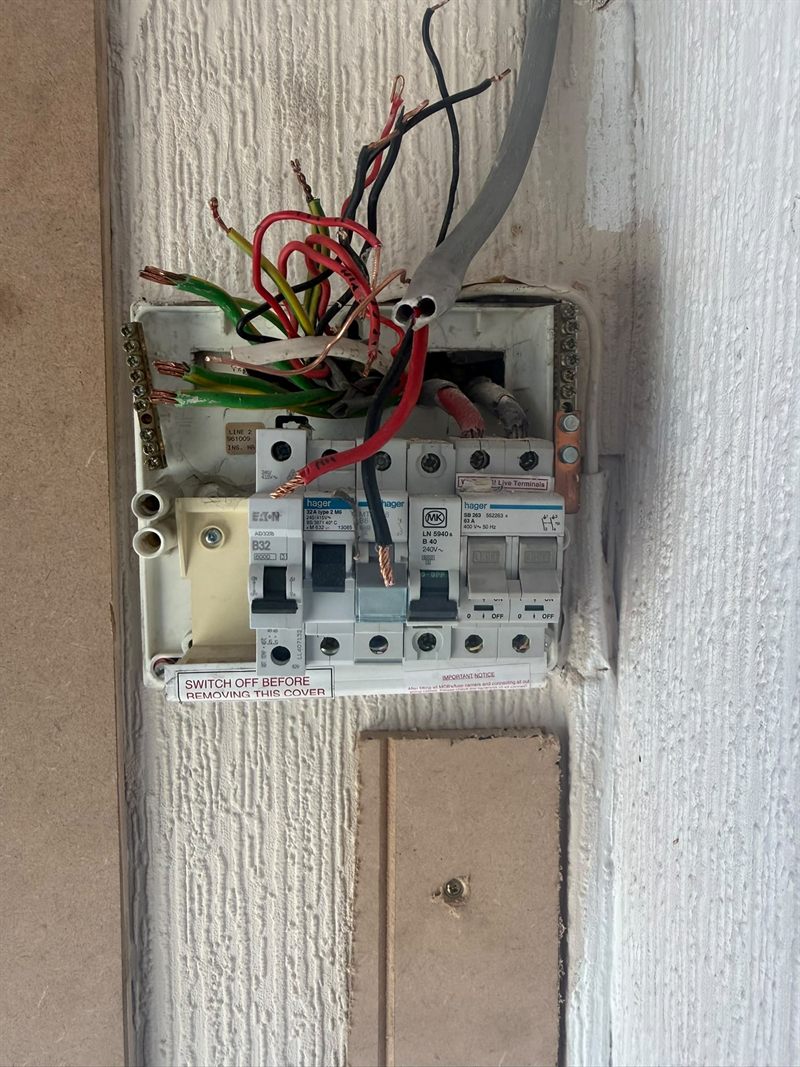

The board before replacement: an ageing plastic consumer unit with the cover removed, wired in the old red and black colours, with mixed makes of breaker fitted over the years. Before

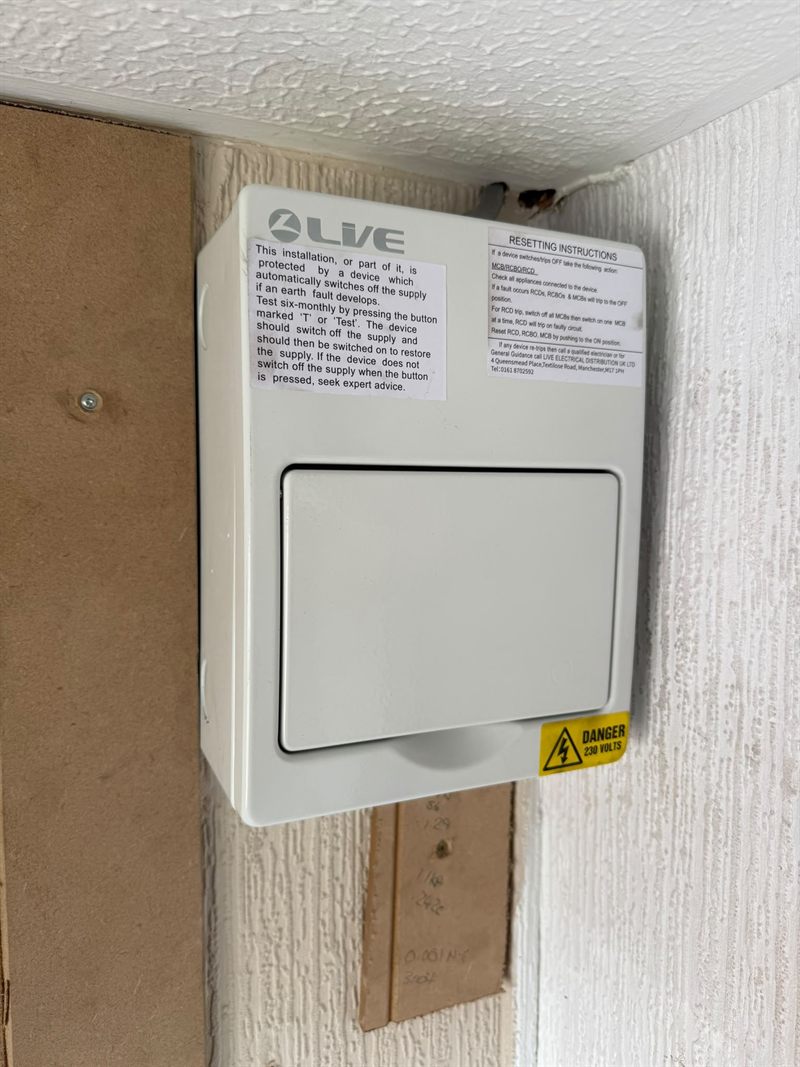

The same wall after replacement: a new consumer unit closed up, carrying the RCD six-monthly test notice and the 230 volt warning label. After
Straight swap, same spot on the wall

The board that came out was still on the old red and black wiring colours, which dates it to before 2004, and had picked up breakers from three different makers over the years. It came out, the new unit went back in the same position, and the only thing the customer had to redecorate around was nothing at all. The label on the front is the six-monthly RCD test reminder, which is the bit people forget exists.

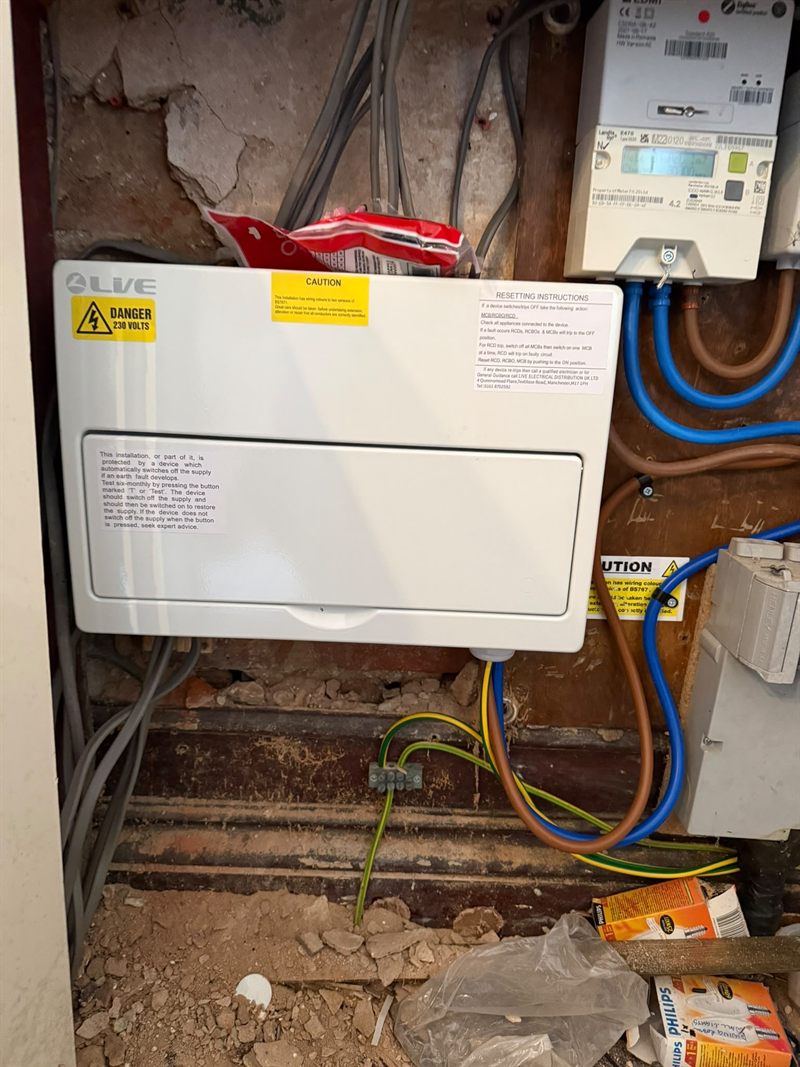

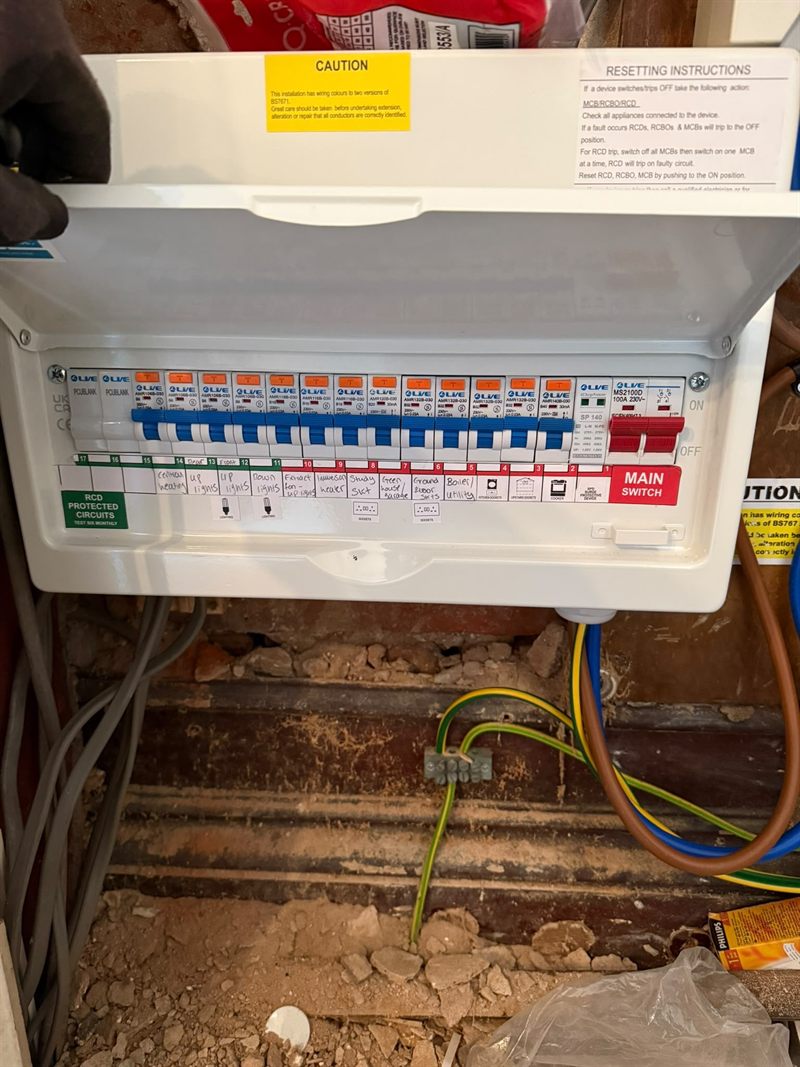

A finished consumer unit with the lid open, showing an individual RCBO for every circuit, a surge protection device, a 100 amp main switch, and every way written up by hand on the schedule strip. The same consumer unit closed, sitting beside the electricity meter with the tails run in and the earthing block below. A separate weatherproof RCD enclosure fitted nearby, glanded and labelled with its own test notice.
Every circuit on its own RCBO, every way labelled

Fourteen ways, an RCBO on each one, surge protection on the end and a 100A main switch. An RCBO per circuit is the bit worth paying for: when something trips, one circuit goes off instead of half the house, and you can see which one it was without a torch. The schedule is filled in by hand before we leave, because a board nobody can read is a board nobody can safely work on. The third photo is the separate RCD enclosure feeding the outbuilding.

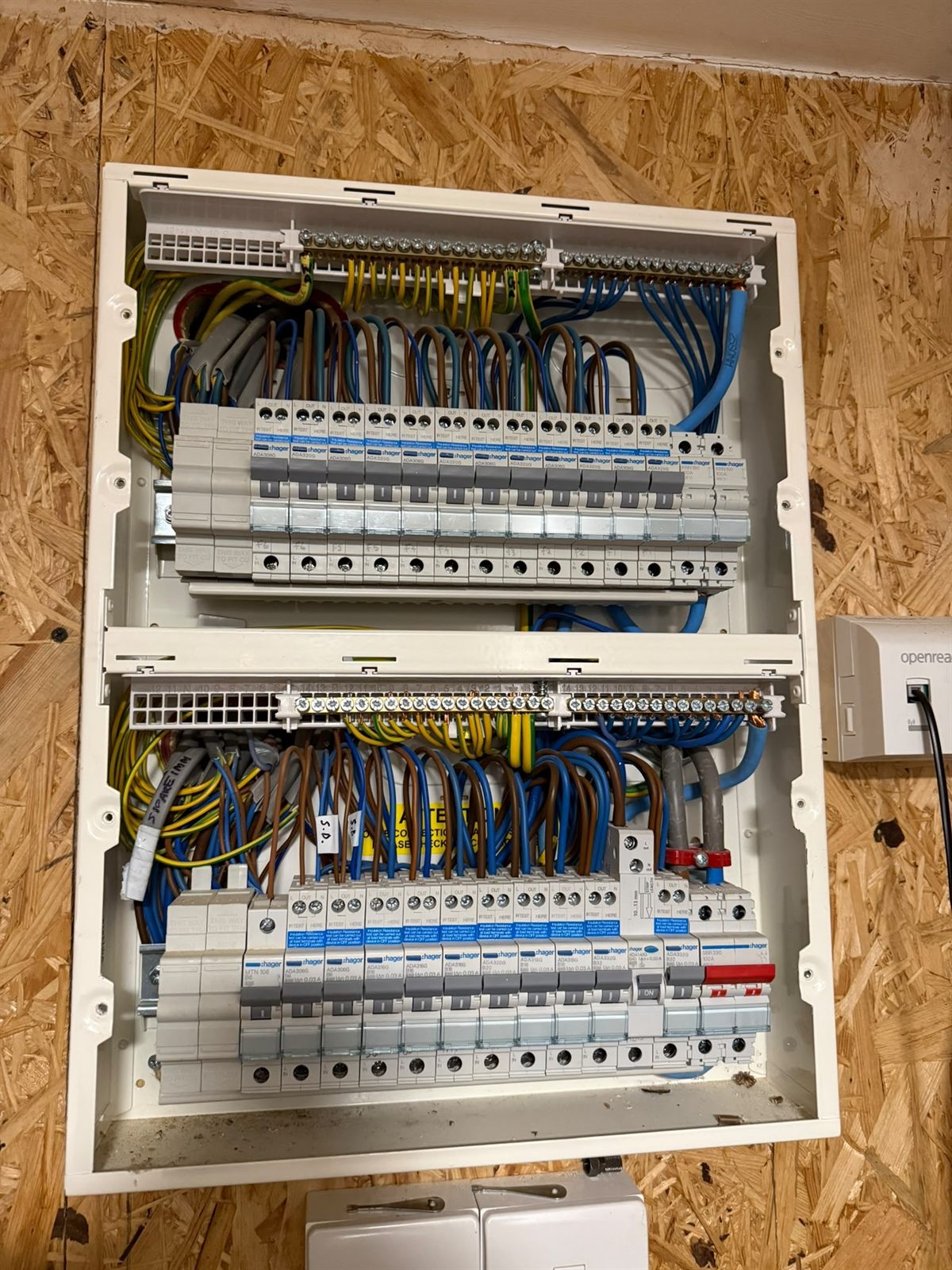

Two consumer units mounted one above the other, each way on its own RCBO, with the circuit conductors looped in and dressed neatly to the terminal bars.
Two boards, one property, nothing shared

Some houses have more circuits than one board can take. Rather than cram them or leave a second-rate sub-board hanging off the first, this one got a pair of boards with a proper split, an RCBO on every way in both. The dressing is not for the photo. Conductors run to length and combed into the bars means the next electrician can trace a circuit in seconds, and terminals stay tight because nothing is under strain.

These are boards we have actually fitted, photographed on the day. We are not putting a price against each one, because the number depends on your circuits and your earthing rather than on somebody else's house. The cost page shows how a price is built up, or send three photos and get your own figure in two working hours.
